PhatBox Install Pics and Instructions
So, Everyone's getting on the PhatBox bandwagon now. This is a <b>good thing</b>. There are a few of us who got boxes directly from PhatNoise and have had them in our cars for awhile. So, I'll offer these tips and pics to those interested.(I know the new ones have a somewhat different shape case, but I'm sure the dimensions are similar.)
As a preface, I've got a 2001 S4 Sedan (So these pics may not exactly match up - I understand there are some differences with the my2000 and Avants.)
With that being said let get into it...

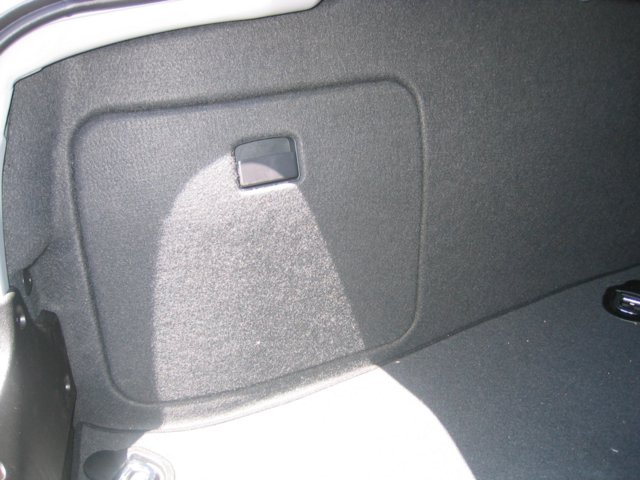

As you can see here it does fit with the little door closed:
<img src="http://www.thes4.com/PhatBox/IMG_5294.jpg">

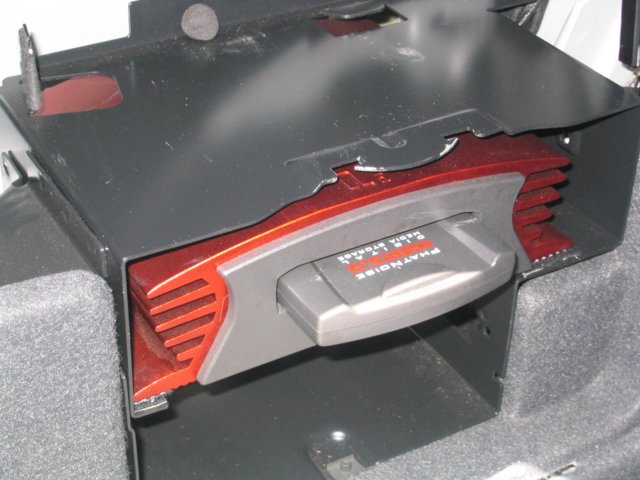

Take the cover off, and the toolbox out. (The toolbox latches don't scrape on the top of the PhatBox)
<img src="http://www.thes4.com/PhatBox/IMG_5296.jpg">

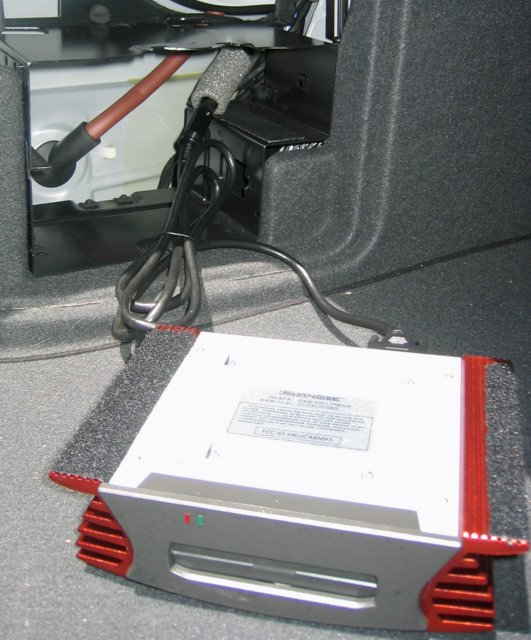

I've removed the PB - lifting up on it on both sides - the top of the PB hitting the metal shelf above to separate the two sides of the velcro - and slid it forward. Here you can see the cable from the CD changer connector (wrapped in foam in the background) to the PB - even this long cable tucks behind quite nicely. You can see here the self adhesive velcro on the bottom edges of the PB - the velcro on the right in this pic is narrower to match the narrower ledge on the left - not necessary, but a nice touch.
<img src="http://www.thes4.com/PhatBox/IMG_5312.jpg">
Another view of the bottom side of the PB, the CD changer slot,and the connector cable.
<img src="http://www.thes4.com/PhatBox/IMG_5314.jpg">

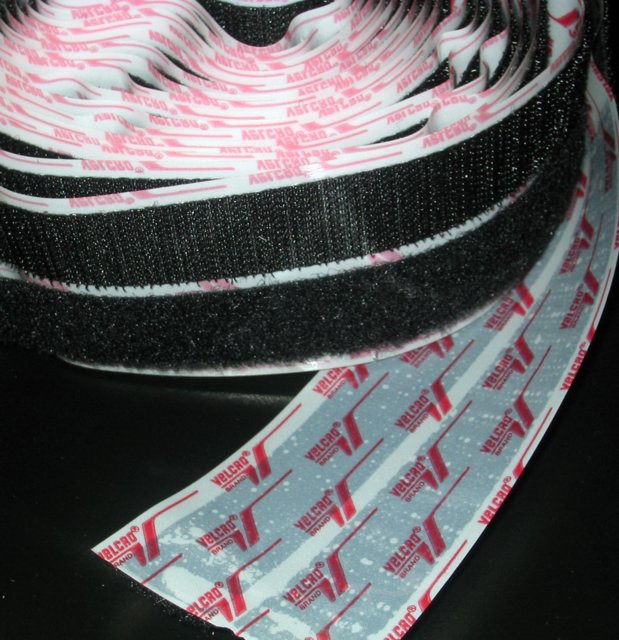

I used velcro like this but in 2 inch width which I trimmed down. (I got it at a hardware store, but WalMart or HomeDepot should have the stuff by the foot. But, if anyone wants, I can send you some of this stuff, email me your address)
<img src="http://www.thes4.com/PhatBox/IMG_5318.jpg">

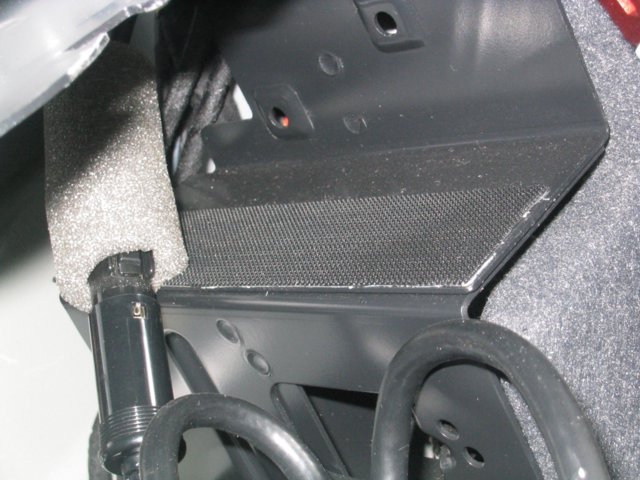

Here's the right side velcro. (I put the hook side on the car and the loop side on the PB.) I "dry-fit" the PB in the changer slot and drew lines with a pencil on the shelf and the bottom of the PB, to align the velcro with. I used 2 inch wide velcro and trimmed it. as appropriate. (Don't use your good scissors as the stickum is pretty tough stuff - for the same reason, be <b>VERY CAREFUL</b> to get the velcro in the place you want it - it ain't comin' back off easily.)
<img src="http://www.thes4.com/PhatBox/IMG_5307.jpg">

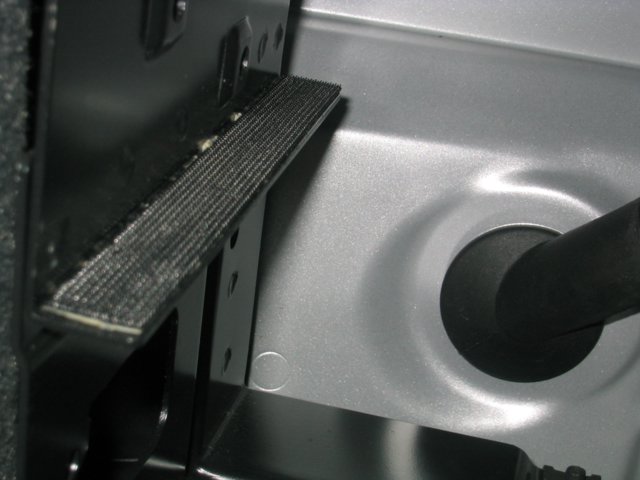

Here's the right side lip with the velcro cut to fit.
<img src="http://www.thes4.com/PhatBox/IMG_5308.jpg">
Once you've got the 4 pieces of velcro stuck, just attach the cable, tuck the extra length behind the slot, and holding the PB against the top of the slot as well as the left edge - keeping it away from the mating velcro, slide it back, until the front is flush with the edge of the slot, and then press down to mate the velcro. <b>AND THERE YOU HAVE IT!</b> Much easier to do than trying to screw it in and easier to remove if you ever need to as well.
Now for some bonus pics:

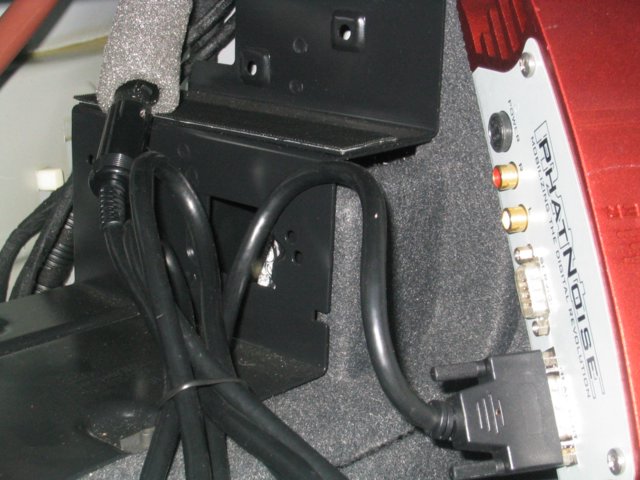

I have the First Gen (Actually Beta) Hardware and the back of it has an aux power connector, RCA plugs, and a serial port. (You do know this thing is running linux right?)
<img src="http://www.thes4.com/PhatBox/IMG_5303.jpg">
And the car that was parked next to me when I went out to take pics just now! Anyone want? It's for sale.
<img src="http://www.thes4.com/PhatBox/IMG_5287.jpg">
As a preface, I've got a 2001 S4 Sedan (So these pics may not exactly match up - I understand there are some differences with the my2000 and Avants.)
With that being said let get into it...
As you can see here it does fit with the little door closed:
<img src="http://www.thes4.com/PhatBox/IMG_5294.jpg">
Take the cover off, and the toolbox out. (The toolbox latches don't scrape on the top of the PhatBox)
<img src="http://www.thes4.com/PhatBox/IMG_5296.jpg">
I've removed the PB - lifting up on it on both sides - the top of the PB hitting the metal shelf above to separate the two sides of the velcro - and slid it forward. Here you can see the cable from the CD changer connector (wrapped in foam in the background) to the PB - even this long cable tucks behind quite nicely. You can see here the self adhesive velcro on the bottom edges of the PB - the velcro on the right in this pic is narrower to match the narrower ledge on the left - not necessary, but a nice touch.
<img src="http://www.thes4.com/PhatBox/IMG_5312.jpg">
Another view of the bottom side of the PB, the CD changer slot,and the connector cable.
<img src="http://www.thes4.com/PhatBox/IMG_5314.jpg">
I used velcro like this but in 2 inch width which I trimmed down. (I got it at a hardware store, but WalMart or HomeDepot should have the stuff by the foot. But, if anyone wants, I can send you some of this stuff, email me your address)
<img src="http://www.thes4.com/PhatBox/IMG_5318.jpg">
Here's the right side velcro. (I put the hook side on the car and the loop side on the PB.) I "dry-fit" the PB in the changer slot and drew lines with a pencil on the shelf and the bottom of the PB, to align the velcro with. I used 2 inch wide velcro and trimmed it. as appropriate. (Don't use your good scissors as the stickum is pretty tough stuff - for the same reason, be <b>VERY CAREFUL</b> to get the velcro in the place you want it - it ain't comin' back off easily.)
<img src="http://www.thes4.com/PhatBox/IMG_5307.jpg">
Here's the right side lip with the velcro cut to fit.
<img src="http://www.thes4.com/PhatBox/IMG_5308.jpg">
Once you've got the 4 pieces of velcro stuck, just attach the cable, tuck the extra length behind the slot, and holding the PB against the top of the slot as well as the left edge - keeping it away from the mating velcro, slide it back, until the front is flush with the edge of the slot, and then press down to mate the velcro. <b>AND THERE YOU HAVE IT!</b> Much easier to do than trying to screw it in and easier to remove if you ever need to as well.
Now for some bonus pics:
I have the First Gen (Actually Beta) Hardware and the back of it has an aux power connector, RCA plugs, and a serial port. (You do know this thing is running linux right?)
<img src="http://www.thes4.com/PhatBox/IMG_5303.jpg">
And the car that was parked next to me when I went out to take pics just now! Anyone want? It's for sale.
<img src="http://www.thes4.com/PhatBox/IMG_5287.jpg">
#3
The latest VW / Audi Phatbox is NOT the same size as yours.
I had a feeling yours was different. The problem with the new design is that it's NOT flat where it comes in contact with the cage and it's bigger, it's takes the ENTIRE cage (left to right)
Velcro will still work but not as good. I will probably stick with the velcro but wish they would have kept the same design or at least a FLAT bottom.
Velcro on the sides makes it very difficult due to lack of room left to right .. Velcro on the TOP may work ..
Velcro will still work but not as good. I will probably stick with the velcro but wish they would have kept the same design or at least a FLAT bottom.
Velcro on the sides makes it very difficult due to lack of room left to right .. Velcro on the TOP may work ..
#6
I can take some tonight ... It's weird how the hollow metal pieces
on the ends are shaped, they are curved, and do not touch the cage until it transitions towards the actual hardware. The cage is VERY narrow on the left, making the velcro a ineffective. The right side is a bit bitter.
